Description
|
Dimensions / Specifications
|
Load Carrying Capacity
|
7000 KGS
|
Pallet sizes that can be accommodated
|
1 of 10 x 8 Inch
|

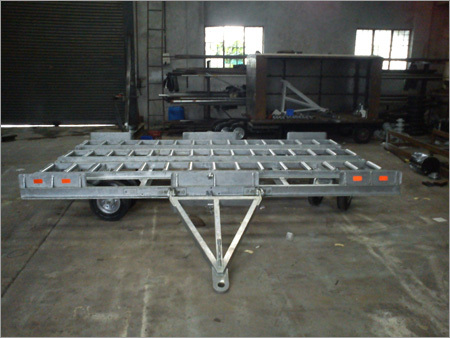

The dimensions of the Pallet Dollies
|
Overall length (with handle)
|
3874 mm (approx 152.5 Inch)
|
Overall length (for base frame)
|
2604 mm. (approx 102.5 Inch )
|
Overall width
|
3229 mm. (approx 127 Inch)
|
Overall height with side guide plate
|
557 mm (approx 22 Inch)
|
Overall height from ground to of top roller
|
508 mm (approx 20 Inch)
|
Overall length for Tow handle
|
1084 mm. (approx 43 Inch)
|
Pallet Guide plate inside distance
|
2515 mm (approx 99 Inch)
|
Wheel base
|
1678 mm.(approx 66 Inch)
|
Rollers
|
|
Roller diameter / Qty / Bearing
|
Dia 60 / 45 nos. / 6204 2Z)
|
Wheels
|
Dia 16 x 4 Inch moulded
|
Front wheel will be mounted with turntable, rear wheels will be fixed type
|
Self actuating brakes will be provided on the rear wheels
|
Wheel bearing
|
Taper roller 30305 , 30306
|
Turn table bearing
|
Taper roller 30211 , 30210
|
Rear side tow hook with dia 40 mm pin provided.
|
Tow handle hook plate hole dia 42 mm.
|
Pallet locks spring type
|
Pallet lock bar Dia 40 mm
|
Material specifications
|
Frame
|
M.S Channel 100x50x5 THK
|
Tow handle
|
M.S Channel box 75x80x5 THK
|
Axle
|
Alloy Steel Round bar
|
All types bolt. Nut & washer
|
Hi tensile plated
|
Roller mounting frame
|
M.S Channel 75 x 40 x 5 thk
|
All Bearings
|
SKF or Equivalent
|
Welding
|
Standard welding process.
|
Surface Coating
|
PU Painting as per customers colour
|
