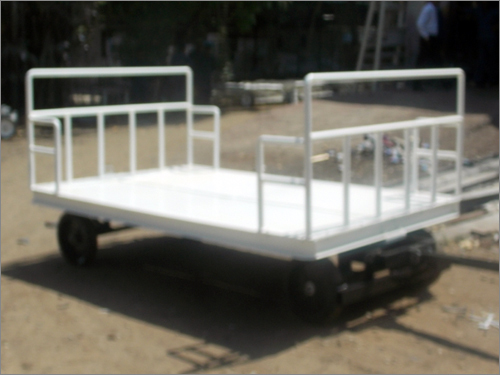

Open Baggage Cart

Open Baggage Cart
Open Baggage Cart
Send Inquiry
Product Code : 74
Price And Quantity
  • Unit of Measure
  • ,
Product Description
Salient Features
  • Suitable for loading capacity 3600 kgs
  • Robust Construction
  • Side boards made from Square Pipes
  • Provision of Corner Buffers for protection
  • Self actuating brakes provided
  • Tow hook provided
  • Fifth wheel type turn table mechanism for easy manoeuvrability

Technical Specification

Description

Dimensions / Specification

Trolley Dimensions

Overall length (with handle)

3303 mm (130”)

Overall length (for base frame)

2620 mm (103)

Overall width

1500 mm (59”)

Overall height

1509 mm (59”)

Overall length for Tow handle

1000 mm (39”)

Inside Area

8’X4’(2400 X 1200 mm. Approx)

Wheel

∅ 16’’ x 4’’, 4 nos, moulded

Front wheel will be mounting

Turn Table Type or Fifth wheel type mechanism.

Rear wheel

Will be mounted of fix type.

Wheel bearing

30305 , 30306

Rear side tow hook pin

∅24 mm Spring Operated

Tow handle hook hole

∅40 mm.

Parking Brakes

Provided (Active when handle is lifted and locked)

Material specifications

Base Frame

M.S Channel, 100x50x5 thk

Tow handle

M.S Box 75 x 40 x 4.7 thk.

Axle

EN8 SQ. BAR 40 x 40

Hub & Disc

Cast Iron / moulded solid rubber

All types Nut bolts.

Hi-tensile & plated

Welding

Standard welding process.

Surface Coating

Painted as per customer colours
